2D grid view

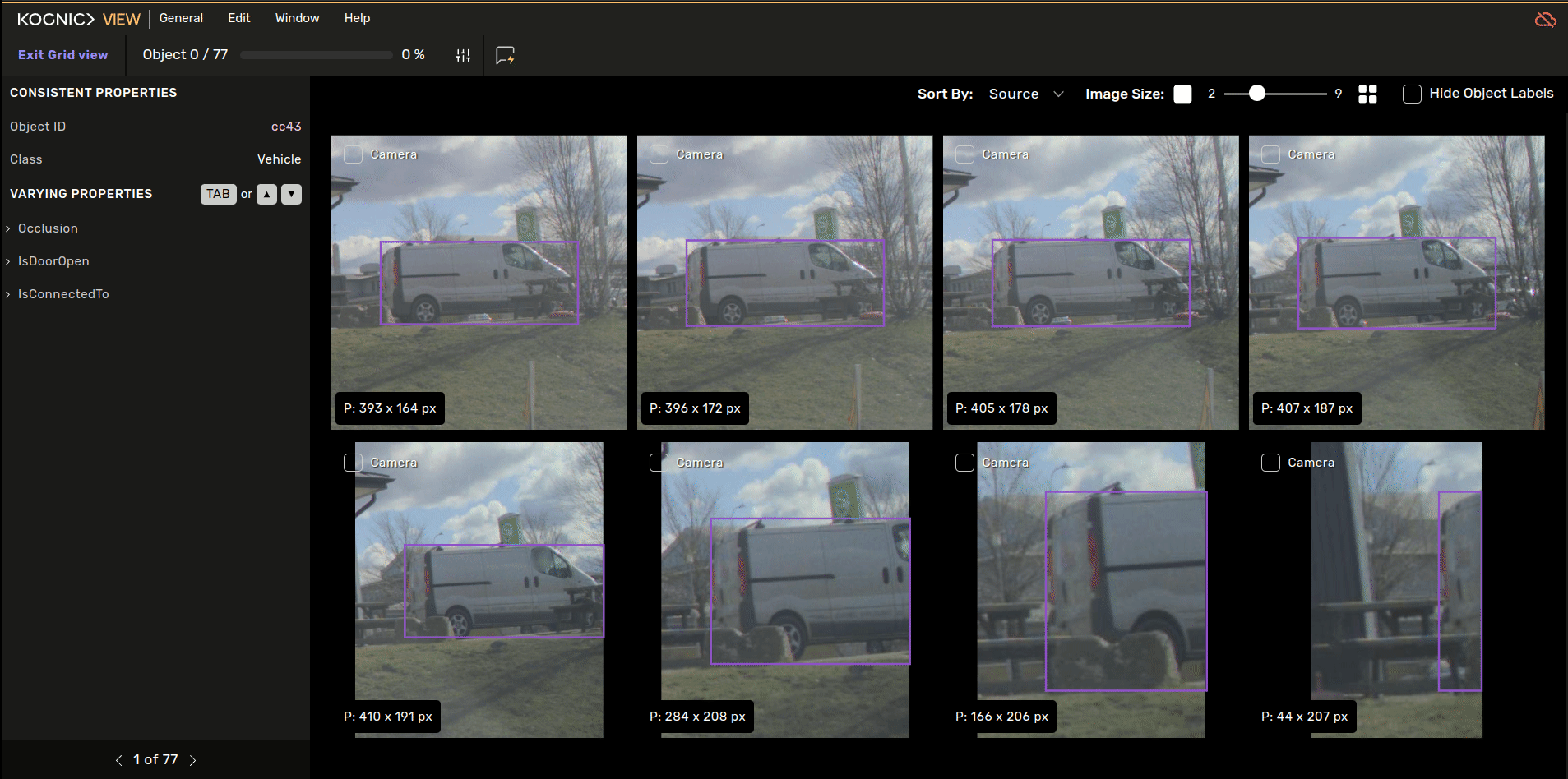

the 2d grid view is available in sequences with 2d bounding boxes docid\ tfjsznromwyazm4 smr5c in the grid, you will see the selected object from all camera sources and frames in this view you can leave feedback and set properties in multiple frames at once interactions multi select hold shift and move the mouse across the images you wish to select once selected, you are given different actionable options, e g , leave feedback or change properties expand hold alt and move the mouse across the images to expand the image this allows you to quickly inspect the image in more detail changing object you can step to the next object in the task by pressing enter the object will be marked as inspected and the progress bar in the top will increment by one showing how many objects you have viewed in the 2d grid view context menu right clicking on an image will open a context menu the menu option show in main view deactivates grid view and goes to the frame and source in the main view settings sort by you are able to sort the grid by source or frames with source all frames from a specific source is present after each other with frames the sources will be present after each other for each frame image size this setting lets you adjust the number of columns of images you will see in the grid additionally, hold ctrl and scroll to adjust hide object labels hides all object labels on the images if you temporarily need to get a better view of the object varying properties in the left side menu you will find all the varying properties for the selected object selecting a varying property will highlight the geometry with a unique color for each value that has been set you will also find the value in the object labels in the corner select a property value to filter the gallery once selected, you will only show the images that has that property value you can step between the property values using tab use the arrow up and arrow down keys to step between the different properties quick feedback you are able to use quick feedback docid\ krkomu08gw23lda3tihuh in order to add feedback items more efficiently activate by clicking on the icon in the top bar or use the shortcut (default ctrl+x ) and click on an image when you have a property selected the quick feedback will automatically be filtered to leave feedback on the selected property you can also utilize multiselect to provide feedback to many frames at once select all images you wish to leave the same type of feedback on and active quick feedback
