Polygon classification tool

2min

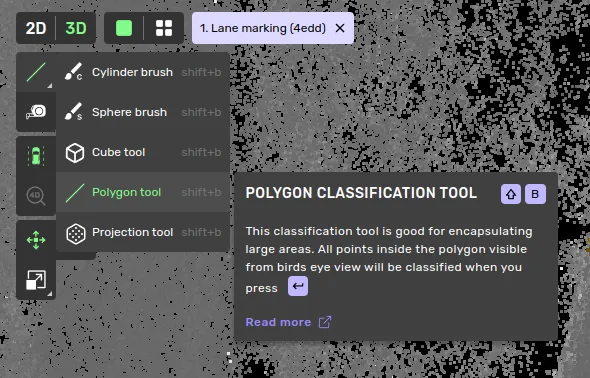

The polygon classification tool is an alternative to the brush tools. It can be used to quickly classify large areas which are easily encapsulated by a polygon in birds eye view, such as roads or curbs.

Document image
ο»Ώ

Drawing process

  1. Select a class
  2. Draw a closed polygon (ideally in birds eye view)
    1. If you accidentally misplace a point you can undo with ctrl+z
    2. Press enter to complete the drawing process
  3. Press enter to apply the classification to all points inside the polygon as seen from birds eye view.
Document image
ο»Ώ

ο»Ώ
